Ground-breaking innovation
Liquid-cooled
brakes
Revolutionary brake for all types of vehicles - from cars and commercial vehicles to buses, trains, trams, motorcycles and even airplanes. Our eco-friendly brake meets the highest standards thanks to a closed system that drains impurities into a filter.
HIGHER BRAKING TORQUE
LOWER WEIGHT
ECO-FRIENDLY
B-BRAKES
LIQUID COOLED BRAKE
TYPE B
-
Lquid cooled brake for motorbikes.
-
Our eco-friendly brake meets the highest standards thanks to a closed system that drains brake dust into a filter.
-
It offers higher braking torque than current systems, yet is lighter and fits on both front and rear wheel.
-
The brake is integrated directly into the wheel rim.
-
The brake can be part of the rim as a single unit.
-
The brake is waterproof with IP68
-
The clamping force is generated by a hydraulic system, as in conventional disc brake designs.
-
This design requires the creation of a pressurized circuit for circulating the coolant with filtration, as well as a second hydraulic circuit for generating braking force.
-
Left-hand and right-hand versions are the same.
VIZUALIZATION OF LIQUID COOLED BRAKE ON FRONT WHEEL
SPECIFICATIONS OF BASIC PARAMETERS OF B-BRAKE FOR MOTORBIKES
BRAKE DISC DIAMETER
BRAKE LENGTH
BRAKE DISC DIAMETER
mm
130
140
150
BRAKE LENGTH
mm
110
110
110
BRAKE WEIGHT * / **
kg
4 / 2,6
4,4 / 2,9
5 / 3,3
BRAKING TORQUE
Nm
1 200
1 600
2 000
* - Duralumin construction with steel bearings
** - Composite material construction + ceramic bearings
DESIGN
Liquid cooled brake is integrated directly into motorbike wheel rim.

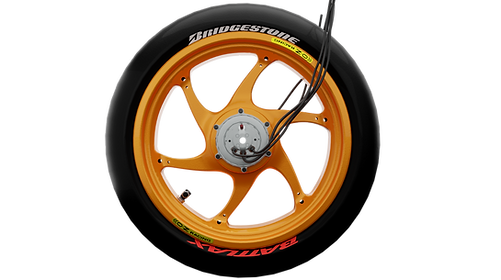

Liquid cooled brake by B-BRAKES
Disc brake with two discs
The B-BRAKES design simplifies the design of the motorcycle wheel rim.

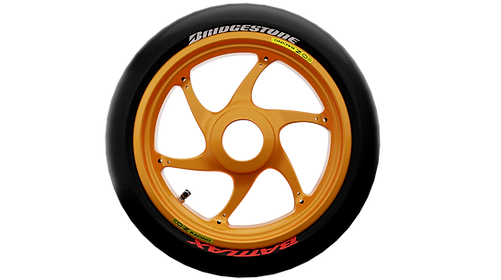

Wheel rim for liquid cooled brake

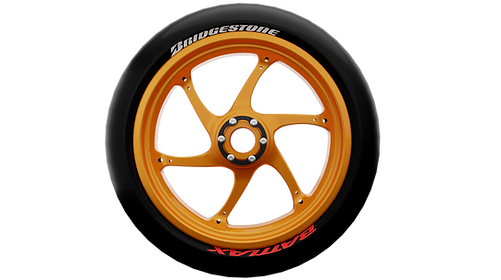

Wheel rim for disc brakes
ADVANTAGES OF LIQUID-COOLED BRAKES COMPARED TO DISC BRAKES
Zero air contamination by brake dust particles
Higher braking torque
Lower weight
Longer lifetime
Lower maintenance expenses
Lower production price
Can be fitted in both front or rear wheel
Waterproof with IP68
1. What is a B-BRAKES liquid-cooled brake?
The B-BRAKES liquid-cooled brake is a sophisticated brake system solution designed as an environmentally friendly, powerful and reliable alternative to traditional disc brakes. It uses a closed circuit with coolant that effectively removes heat and brake dust particles that would otherwise be released into the air.
2. What are the main advantages of this brake?
The B-BRAKES brake provides increased braking torque, excellent heat dissipation during repeated braking and eliminates forces stressing bearings and other vehicle parts. Thanks to its compact design, the brake can be installed in both front or rear wheel.
3. What vehicles is this brake suitable for?
The B-BRAKES brake TYPE B is suitable for motorbikes.
4. What is the environmental impact of the B-BRAKES braking system?
The brake is designed with ecology in mind. The particulates released from the brake disc and pads during braking are then passed in a closed circuit to a filter that captures them. As a result, brake dust particles are not released into the air and remain in the closed system until environmentally friendly disposal when the filter is replaced during regular vehicle maintenance. The low weight of the brake also has a positive impact on the environment.
5. What is the technological principle of operation?
The B-BRAKES liquid-cooled brake TYPE B is only in hydraulic variant.
Hydraulic - the braking torque is generated by the pressure of the liquid on the pressure disc with the brake lining.
6. How frequent is the service interval of the B-BRAKES brake?
The brake minimizes the need for regular maintenance due to its closed circuit with cooling and dirt filtration.
The brake lining follows the circular shape of the disc and, thanks to efficient heat dissipation and a sufficiently large friction surface, there is only minimal wear. It is only necessary to change the particulate filter approximately once every 50,000 km.
7. How does it differ from other modern braking systems?
Compared to traditional systems, the B-BRAKES brake is more compact, has a higher braking torque, dissipates heat better and can also be installed directly in wheel rim. This improves handling and driving comfort.
8. Why choose B-BRAKES brakes?
B-BRAKES represents a revolutionary step towards greener, more efficient and more comfortable mobility. It offers unique technical advantages, easy integration into different vehicles and reduces overall running costs.
With B-BRAKES you are investing in the future of braking systems.
